Although time and its measurement is a fundamental component of human life, a special type of clock which takes matters to the next level is the so-called astronomical clock and whose purpose is not to measure time per se but to convey astronomical information and, in particular, the relative position of the Sun and Moon as well as the zodiacal constellations and, in some cases, the position of the planets all as a function of time.

The oldest such effort to effectively emulate the overhead celestial sphere (ie a mini-planetarium) is the Antikythera Mechanism which was discovered in 1901 totally by accident by sponge divers off the coast of the Greek island of Antikythera. It has been dated to approximately 80 BC and it is believed to be the work of Poseidonius of Rhodes. The Antikythera Mechanism is currently on display at the National Archaeological Museum in Athens, Greece.

Note: The astrolabe is yet another instrument constructed to describe the overhead sky and monitor time. Some versions also have religious implications such as the Muslim Qibla where a magnetic compass on the back side of the astrolabe helps the user identify the proper orientation so as to point at Mecca for prayer. It is believed that astrolabes were first developed by the Greeks around the second century BC and were slowly adopted throughout the known world of the time by numerous cultures. Astrolabes describe the position of the planets and prominent stars visible at a particular latitude (see curved markings on each dial in the photo below) and, by extension, act as time-keeping devices. Similarly, they assist in the time of expected sunrise which is vital for the Muslim religion and the timing of morning prayers. Today's planispheres can be said to be a direct extension of the ancient astrolabe, for they function and inform the user of precisely the same information sought-after by users many centuries ago.

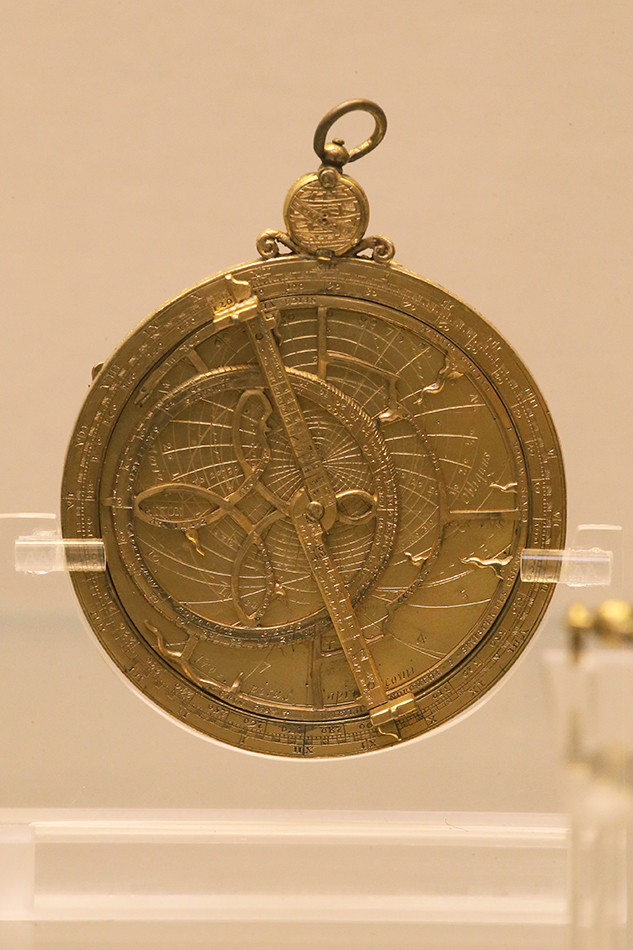

The small gilted brass astrolabe below is currently on display at the British Museum (London) and forms part of the Albukhary Foundation Gallery of the Islamic world on Level 3 (rooms 42 and 43) where a total of nine astrolabes are on display. The craftsman behind this astrolabe was the well-known English scientific instrument maker Humfrey Cole who worked out of London with the astrolabe dated 1574 AD thanks to a vertical inscription at the base of the mater. The astrolabe is relatively small with a diameter of only 88 mm and a thicknes of 6 mm. The throne has a compass protected by a moving lid whereas the mater is richly engraved with markings for a 24-hr clock using two sets of Roman numerals ranging from I to XII as well as a 360-degree graduated arc immediately below it. The rete is both unique and stylistic with three intersecting oval loops as well as a smaller fourth oval loop with the three larger loops having a single star pointer where the reference star and its magntitude is identified. There are a total of thirteen star pointers where the Latinized star name is inscribed followed by its magnitude. Of the four tympanums which accompany the astrolabe, two serve the latitudes 51° 30', 52° 30', 53° 40' and 55° 00' whereas the third provides other general data and the fourth tympanum is blank. The rete is double-armed with two lines of inscribed text on each arm. Given the presence of two latitude plates serving specific latitudes, the astrolabe can be considered to be planespheric in nature, for it projects the three-dimensional celestial sphere onto a two-dimensional plane comprised of disks with the latter correcting for differences due to latitude. During the Middle Ages, three-dimensional astrolabes were first described but only one such example seems to have survived to present day and which can be found at the History of Science Museum in Oxford, England (travel and photography forthcoming).

The British Museum in central London is widely regarded as one of the finest museums in the world. Founded in 1753 AD, the British Museum boasts the largest permanent collection in the world with over eight million works, is comprised of ninety-four galleries and is rewarded with about six million visitors annually. Admission to the British Museum is free but an online ticket reservation is highly recommended for quick entry with visitation hours being between 10:00 and 17:00 daily with Friday's closing hour being later (20:30). Public transportation includes four stations all around the museum (Tottenham Court Road, Holborn, Russell Square and Goodge Street).

Note: For additional results involving astronomical clocks and astrolabes (including astrolabe quadrants) from around the world, please click here.
