Astrophotography by Anthony Ayiomamitis

Differential Photometry - HAT-P-19 in Andromeda

A variable star, as its name suggests, is a star whose magnitude varies intrinsically, in contrast to eclipsing binaries whose magnitude varies as a result of one star in the binary system eclipsing the other. True variables are one of five types, namely Mira stars, semiregular stars, cepheids, eruptive variables and, finally, cataclysmic variables. Minimum to maximum magnitude can range from days to many months with some variables displaying irregular periods.

A popular method for the study of variable stars, particularly short-term variables, is by the use of the technique known as "differential photometry". Rather than measure the (variable) magnitude of a variable star on an absolute scale, measurements are made over time relative to one or more non-variable star(s) and these differences are then plotted so as to study and illustrate the relative or differential change in magnitude. Due to the very large number of variables stars, the field of differential photometry represents one of the key fields in astronomy whereby the amateur astronomer can make a meaningful and long-lasting contribution to both science and astronomy.

More recently, the search for extrasolar planets (over 700 discovered so far) has identified yet another interesting application for the practice of differential photometry whereby the minute drops in magnitude of a star hosting an exoplanet are studied. Further details for the interested party are available here.

Note: The light curve for exoplanet HAT-P-19b in Andromeda depicted below is one of the latest transitting exoplanets, having being announced late July/2010, and represents the nineteenth discovery by the Hungarian-based HATNet Project team. HAT-P-19b is characterized with a low mass of only 0.292 times that of Jupiter and in spite of a larger radius (1.132 RJup), thus making this find a low-density Saturn-mass exoplanet with a negligible core mass. Furthermore, radial velocity measurements and the consequent residuals following model-fitting strongly suggest the presence of another body. HAT-P-19b requires 170 minutes to transit its parent star at a depth of 21.5 mmag (2.15%). The parent star, GSC 2283:589, is a K1 dwarf estimated to have a mass of 0.84 solar masses, a radius equivalent to 0.82 solar radii, a temperature of 4,990 K and to lie at a distance of 700 light-years away with a visual magnitude of 12.901. Further details regarding HAT-P-19 and HAT-P-19b are available in the paper published by the discovery team led by Hartman et al here.

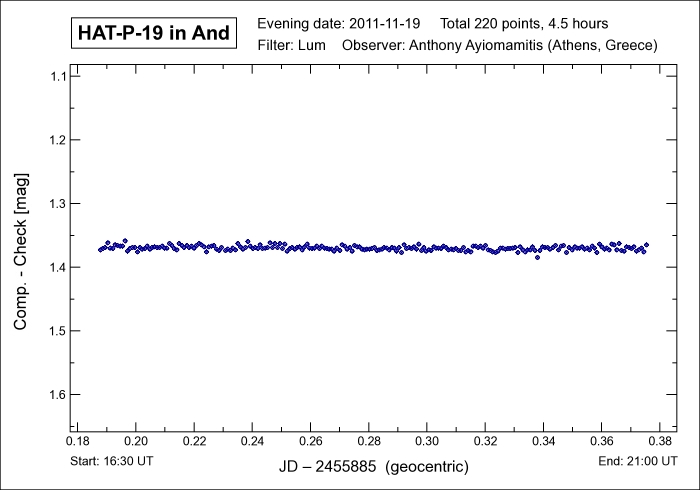

Note: The C- and K-stars used for the purposes of the differential photometry measurements depicted below were GSC 2283:664 (mag 10.9) and GSC 2283:1197 (mag 12.4) respectively.

Image Details

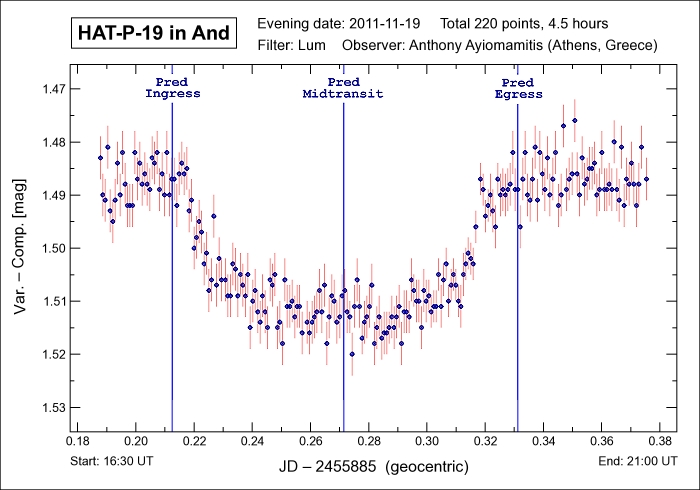

Light Curve for Exoplanet HAT-P-19b
Imaging Details
Parent Star:
HAT-P-19

GSC/SAO Catalog:
GSC 2283:589

Constellation:
Andromeda

RA / Dec:
00h 38m 04s /
+34 42' 42"


Magnitude:
12.901

Distance:
700 light-years
Exoplanet:
HAT-P-19b

Period:
4.008778 + 0.000006 d

Transit Duration:
170 mins

Transit Depth:
21.5 mmag

Minimum Mass:
0.292 MJup

Radius:
1.132 RJup

Pred Transit Details:
Ingress :  17:06 UT
Mid-trans :  18:31 UT
Egress :  19:57 UT


Date:
Nov 19-20, 2011
18:30:00 - 23:01:38 UT+2


Location:
Athens, Greece

Equipment:
AP 305/f3.8 Riccardi-Honders
AP 1200GTO GEM
SBIG ST-10XME
SBIG CFW10
SBIG LRGB filters


Integrations:
Lum :  220 x 60 sec
Dark :  010 x 60 sec
Flat :  ~20,000 ADU
Binning :  1x1

Temperatures:
Ambient : + 03.0 C
CCD Chip : - 25.0 C

Software:
CCDSoft V5.00.201
AIP4Win V2.2


Processing:
Reduction
Differential Photometry
