Astrophotography by Anthony Ayiomamitis

Differential Photometry - Libra

A variable star, as its name suggests, is a star whose magnitude varies intrinsically, in contrast to eclipsing binaries whose magnitude varies as a result of one star in the binary system eclipsing the other. True variables are one of five types, namely Mira stars, semiregular stars, cepheids, eruptive variables and, finally, cataclysmic variables. Minimum to maximum magnitude can range from days to many months with some variables displaying irregular periods.

A popular method for the study of variable stars, particularly short-term variables, is by the use of the technique known as "differential photometry". Rather than measure the (variable) magnitude of a variable star on an absolute scale, measurements are made over time relative to one or more non-variable star(s) and these differences are then plotted so as to study and illustrate the relative or differential change in magnitude. Due to the very large number of variables stars, the field of differential photometry represents one of the key fields in astronomy whereby the amateur astronomer can make a meaningful and long-lasting contribution to both science and astronomy.

More recently, the search for extrasolar planets (over 500 discovered so far) has identified yet another interesting application for the practice of differential photometry whereby the minute drops in magnitude of a star hosting an exoplanet are studied. Further details for the interested party are available here.

Note: The large-amplitude short-period pulsating star EH Lib is a fast pulsating variable star with a period of 127.32 minutes and which involves a delta mag of 0.73 (V) magnitudes during this brief time interval. A study by Boglia et al found this dwarf Cepheid to have stable minima but slightly variable maxima and comparisons with historical records dating as far back as the early 1950's suggesting a variable period as well. Further details from the International Variable Star Index are available here whereas an AAVSO finder chart is available here.

Image Details

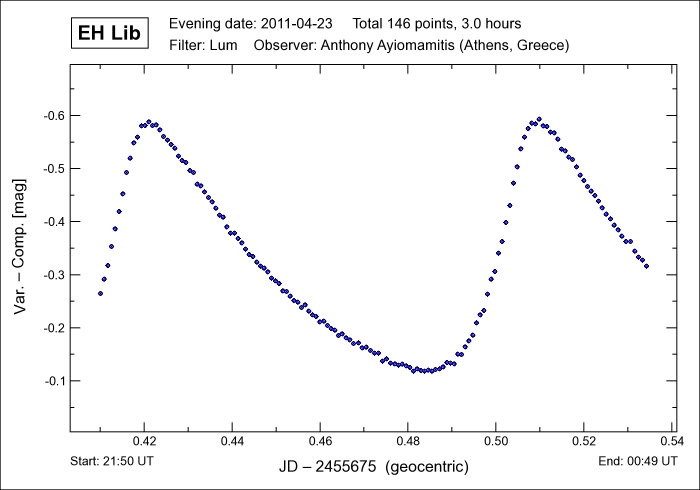

Light Curve for EH Lib
Imaging Details
Variable Star:
EF Lib

Other Designation:
HIP 73315, SAO 140257

RA / Dec:
14h 58m 56s /
-00° 56' 53"


Magnitude:
9.35 - 10.08

Period:
0.0884132445 days

Variability:
DSCT

Comparison Star:
GSC 4987:449

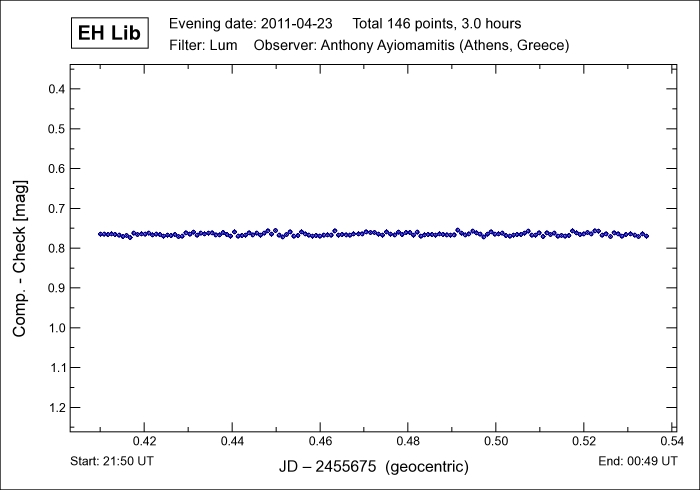

Check Star:
GSC 4987:669


Date:
Apr 23, 2011
00:50 - 03:50 UT+3


Location:
Athens, Greece

Equipment:
AP 160 f/7.5 Starfire EDF
AP 1200GTO GEM
SBIG ST-10XME
SBIG CFW10
SBIG LRGB filters


Integrations:
Lum :  146 x 60 sec
Dark :  010 x 60 sec
Flat :  ~ 22,500 ADU
Binning :  1x1

Temperatures:
Ambient : + 12.0 ° C
CCD Chip : - 20.0 ° C

Software:
CCDSoft V5.00.201
AIP4Win V2.4.0


Processing:
Reduction
Differential Photometry
