Differential Photometry - Ursa Major

A variable star, as its name suggests, is a star whose magnitude varies intrinsically, in contrast to eclipsing binaries whose magnitude varies as a result of one star in the binary system eclipsing the other. True variables are one of five types, namely Mira stars, semiregular stars, cepheids, eruptive variables and, finally, cataclysmic variables. Minimum to maximum magnitude can range from days to many months with some variables displaying irregular periods.

A popular method for the study of variable stars, particularly short-term variables, is by the use of the technique known as "differential photometry". Rather than measure the (variable) magnitude of a variable star on an absolute scale, measurements are made over time relative to one or more non-variable star(s) and these differences are then plotted so as to study and illustrate the relative or differential change in magnitude. Due to the very large number of variables stars, the field of differential photometry represents one of the key fields in astronomy whereby the amateur astronomer can make a meaningful and long-lasting contribution to both science and astronomy.

More recently, the search for extrasolar planets (over 500 discovered so far) has identified yet another interesting application for the practice of differential photometry whereby the minute drops in magnitude of a star hosting an exoplanet are studied. Further details for the interested party are available here.

Note: The large-amplitude short-period pulsating star GW UMa is a fast pulsating variable star with a period of 292.60 minutes and which involves a delta mag of 0.49 (V) magnitudes during this brief time interval. GW Ursae Majoris was discovered by the Hipparcos satellite and confirmed by Hintz et al to be monoperiodic with a constant period. Further details from the General Variable Star Search Gateway are available here whereas an AAVSO finder chart is available here.

Image Details

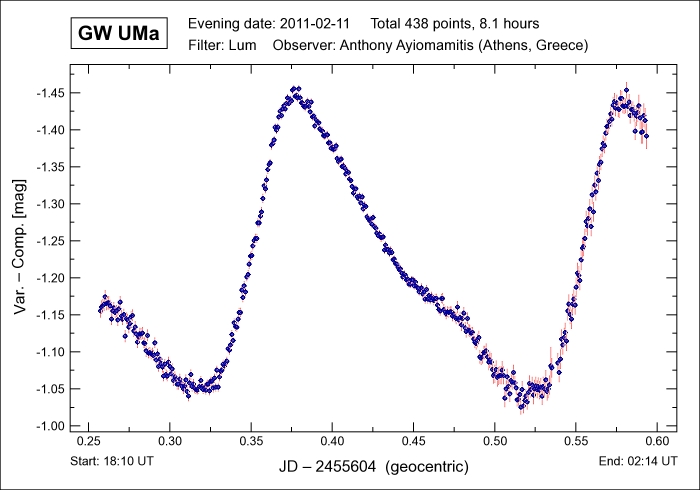

Light Curve for GW UMa
Imaging Details
Variable Star:
GW UMa

Other Designation:
HIP 52508

RA / Dec:
10h 44m 11s /
+44° 40' 44"


Magnitude:
9.48 - 9.97

Period:
0.20319389 days

Variability:
SXPHE

Comparison Star:
GSC 3011:2535

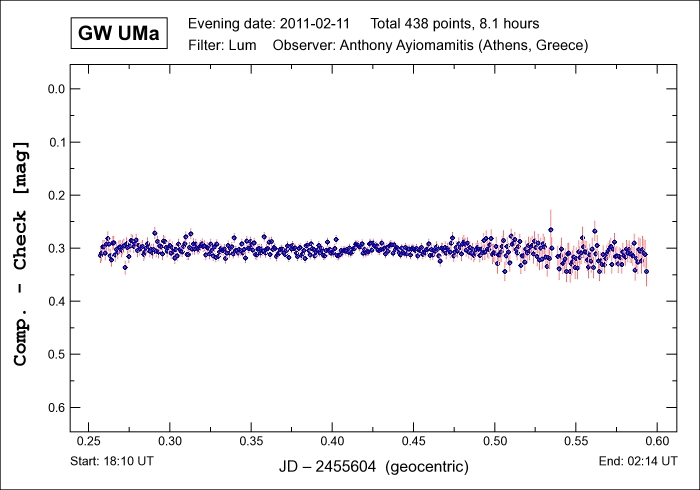

Check Star:
GSC 3011:2527


Date:
Feb 11-12, 2011
20:10 - 04:15 UT+2


Location:
Athens, Greece

Equipment:
AP 160 f/7.5 Starfire EDF
AP 1200GTO GEM
SBIG ST-10XME
SBIG CFW10
SBIG LRGB filters


Integrations:
Lum :  438 x 60 sec
Dark :  010 x 60 sec
Flat :  ~ 24,200 ADU
Binning :  2x2

Temperatures:
Ambient : + 11.0 ° C
CCD Chip : - 25.0 ° C

Software:
CCDSoft V5.00.201
AIP4Win V2.4.0


Processing:
Reduction
Differential Photometry
