Differential Photometry - Vulpecula

A variable star, as its name suggests, is a star whose magnitude varies intrinsically, in contrast to eclipsing binaries whose magnitude varies as a result of one star in the binary system eclipsing the other. True variables are one of five types, namely Mira stars, semiregular stars, cepheids, eruptive variables and, finally, cataclysmic variables. Minimum to maximum magnitude can range from days to many months with some variables displaying irregular periods.

A popular method for the study of variable stars, particularly short-term variables, is by the use of the technique known as "differential photometry". Rather than measure the (variable) magnitude of a variable star on an absolute scale, measurements are made over time relative to one or more non-variable star(s) and these differences are then plotted so as to study and illustrate the relative or differential change in magnitude. Due to the very large number of variables stars, the field of differential photometry represents one of the key fields in astronomy whereby the amateur astronomer can make a meaningful and long-lasting contribution to both science and astronomy.

More recently, the search for extrasolar planets (over 750 discovered so far) has identified yet another interesting application for the practice of differential photometry whereby the minute drops in magnitude of a star hosting an exoplanet are studied. Further details for the interested party are available here.

Note: The eclipsing binary star KN Vul is a quick eclipsing binary variable star with a period of 0.3573325 days and which involves a delta mag of 0.40 (v) magnitudes during this brief time interval. KN Vulpeculae is a W Ursae Majoris-type eclipsing system where the binary components involve main sequence stars with ellipsoidal components virtually in contact with each other and, hence, for its classification, namely "EW/KW". The proximity or virtual contact between the two binary member stars is evident in the light curve below and where the maximum is flatless, thus suggesting little to no visible separation. Further details from the International Variable Star Index are available here whereas an AAVSO finder chart is available here.

Note: The minima observed below are the primary and secondary minima, respectively.

Image Details

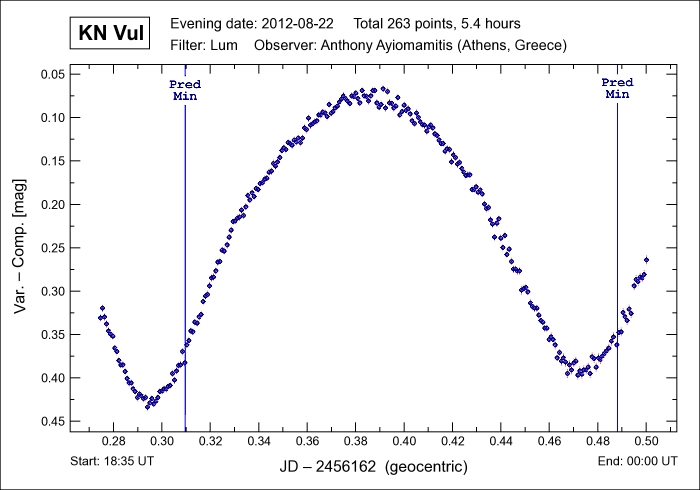

Light Curve for KN Vul
Imaging Details
Variable Star:
KN Vul

Other Designation:
GSC 02148-03403

RA / Dec:
19h 55m 35s /
+27° 42' 21"


Magnitude:
12.55 - 12.95 (v)

Period:
0.3573325 days

Variability:
EW/KW

Comparison Star:
GSC 2148:2711

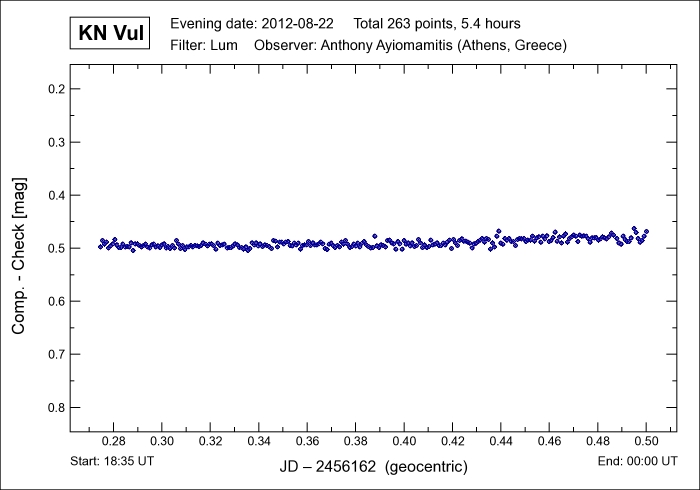

Check Star:
GSC 2148:2088


Date:
Aug 22-23, 2012
21:35 - 03:00 UT+3


Location:
Athens, Greece

Equipment:
AP 305/f3.8 Riccardi-Honders
AP 1200GTO GEM
SBIG ST-10XME
SBIG CFW10
SBIG LRGB filters


Integrations:
Lum :  263 x 60 sec
Dark :  010 x 60 sec
Flat :  ~ 24,300 ADU
Binning :  1x1

Temperatures:
Ambient : + 23.0 ° C
CCD Chip : - 10.0 ° C

Software:
CCDSoft V5.00.201
AIP4Win V2.4.0


Processing:
Reduction
Differential Photometry
